6pin din female male electrical auto connector/PCB install connector

FOB Reference Price:Get Latest Price
$0.30 - $5.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
maojwel
Model Number:
12M
Type:
DIN
Application:
Automotive
Gender:
female and male
color:
silver
Shell material:
Zinc alloy with nikelplate
NO.of contacts:
2-6pin
Coupling:
Threaded coupling
Rated current/voltage:
5A-125V
Operation limit voltage:
200
Withstanding voltage minute:
1500
Contact resistance:
5
Solder cup mouth aperture:
0.8
Solder inter diameter:
1.2
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
boxes or as customer's request
Port
shenzhen or ningbo
Lead Time :
7-10 days after 100% payment

Product Description

   aerospace, communications, and other fields



2.The connector takes the form of push ball locking connection,quick and easy for inserting

    and withdrawing.





Product  parameter

Ambient temperature:-22~+85°C
Relative humidity:Temperature is 40 centigrade reach 93%
Insulation resistance:normal temperature 1500MΩ
Rated current:5A
Vibratioin:Frequency 0~500HZ,reach 100m/s2
Collision:Acceleration 250m/s2
Mechanical life-span:500 times

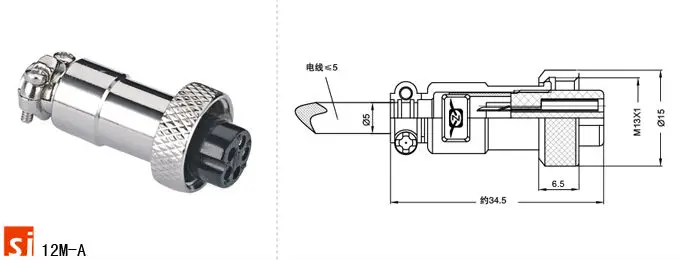

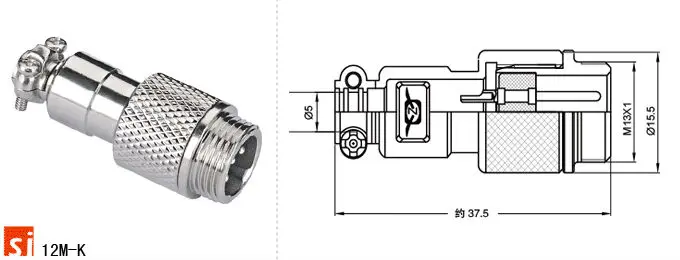

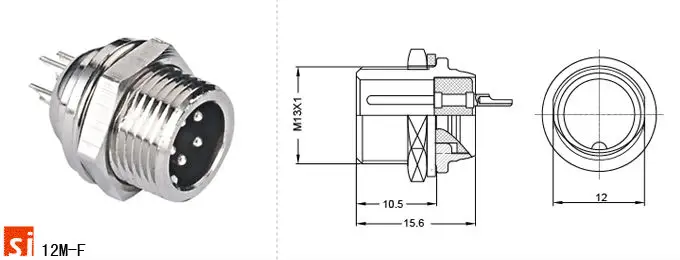

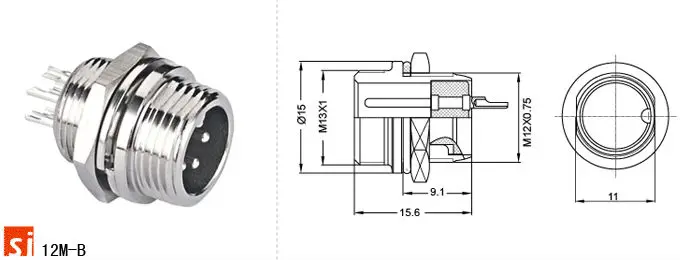

Product structure diagram



12M pins.jpg

12M data.jpg
