Electrical Male and Female Military Connector Plugs and Sockets for Secutiry System

FOB Reference Price:Get Latest Price
$5.00 - $7.00 / Piece | 100 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
MAOJWEI
Model Number:
MIL-C-5015
Application:
Power
Type:
DIN
Gender:
female and male
Anbienbt temperature:
-55°C to+125°C
Durability:
Insert and withdraw 500 times
Material:
Aluminum alloy Die castings or Aluminum alloy
color:
Military green
contact:
Adopt high grade copper
No. Of contact:
2-37 pin
Rated current:
7A-25A
Rated voltage:
125V
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Packaging Detail: export standard packaging
Delivery Detail:usually 7-15 days after the order is confirmed
Port
Shenzhen
Lead Time :
5-7days

Electrical Male and Femal Military Connector Plugs and Sockets for Secutiry System

Product Description



MIL-C-5015,included  MS3106, MS3108, MS3101, MS3102,MS3100, mi- c -5015 connector,amphenol  5015, amphenol MS, MS series connectors, circular electrical connector, military electrical connectors, aerospace electrical connector, MIL spec connector, MIL 5015 connector, circular connectors

• Medium to heavy weight cylindrical

• Durable, field-proven design
• Environmental resistant
• Resilient inserts
• Operating voltage to 3000 VAC (RMS) at sea level
• Threaded couplings
• Single key/keyway shell polarization
• Cost effective

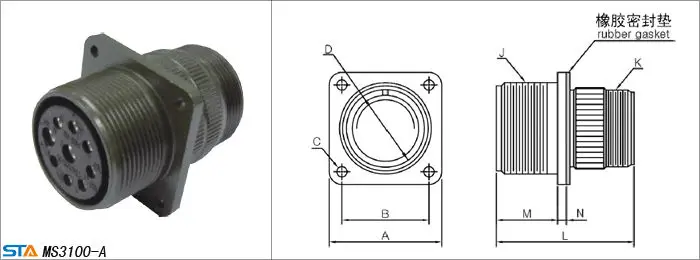

 5015-2.jpg5015-1.jpgMS3100-A

MS3101-A

MS3102-A

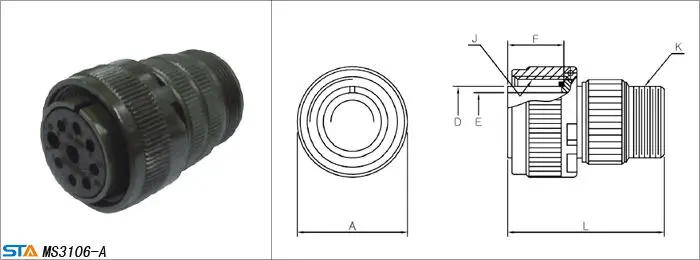

MS3106-A

MS3108-A

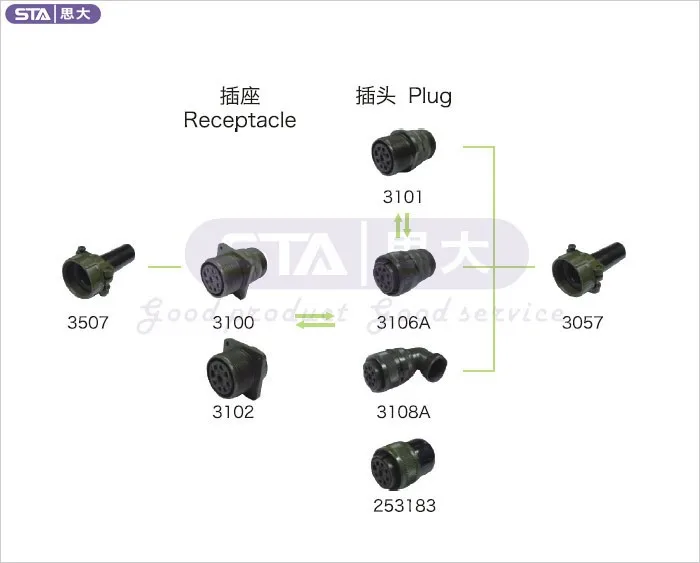

Connector type code name

3100-wall style assembles a socket method

3001-Trunk socket

3102-Box style assembles a socket method

3106-straighten the dyadic attachment plug

3108-Bend the dyadic attachment plug 90 degree

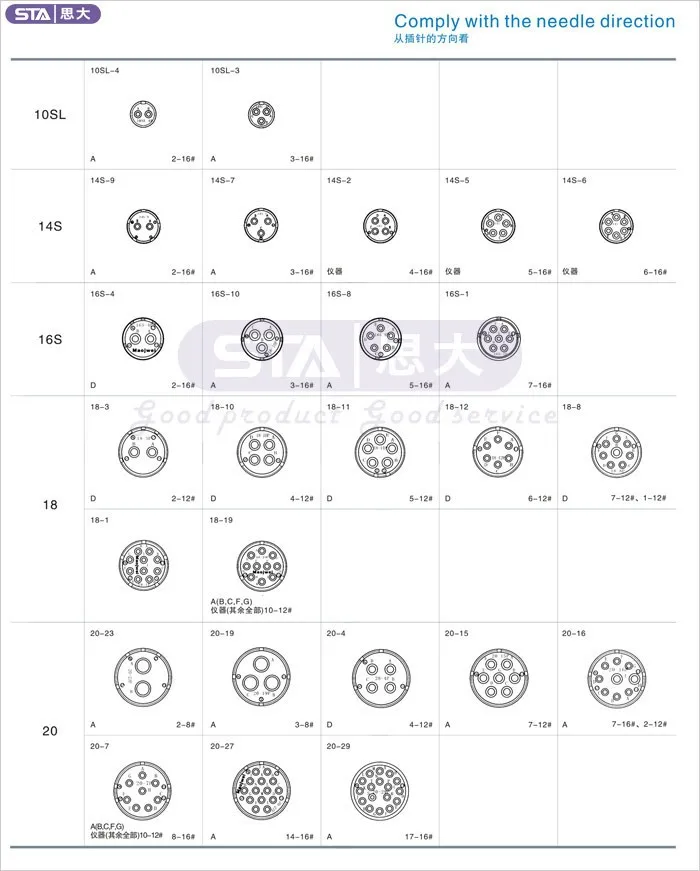

The hole group arranges code name

Monoblock number : 10SL , 14S , 16S , 18 , 20, 22, 24 , 28 , 32

Contact the body type: P-pin   S-jack



Packaging & Shipping

 Packaing: by standard export packaging

Delivery time: usually 7-15 days after the order is confirmed



Our Services

   We supply MIL-C-5015 connectors,  MS connectors,M8 M12 M16 cable connectors ,wago 2060 terminal ,wago294 terminals, phoniex Pluggable Terminal Block,heavy duty circular connectors,and other many kinds of terminals.If you need cable harness, we also can supply harness processing, you just need let us now the spec of the cable and the connectors, we will give you a cable harness drawing.

Company Information

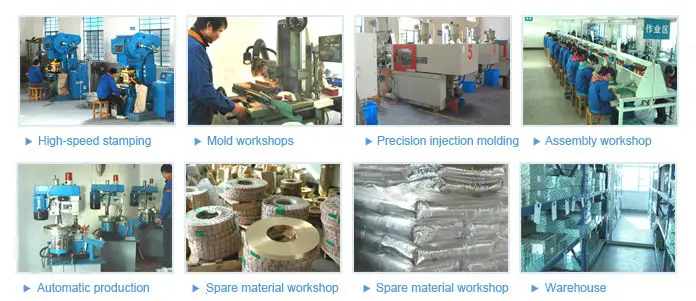

Our company is a expert in producing connectors. We have about 400 workers, so we can produce many connectors one day about 10K. Mostly sample order can send out 1-2days and bigger order will be send out in 5-7days. Our delivery time is short, we have many molds to produce, here is some picture of our factory, you can have a look, welcome all the customers visit our factory, you will choose our factory i promise. factory_01







Contact person:Mike
Skype:mikefu2009
Mobile/WhatsApp:+86 15889781547
Website:https://sz-star.en.alibaba.com
